Daikin Single-Zone Ductless Systems

Ideal for heating and cooling small spaces like single rooms or supplementing your current system.

These ductless HVAC systems are best suited for providing air conditioning for single rooms, additions and supplemental support for problem areas in larger homes. Because Daikin provides a zoning solution, you will have control over the comfort of each area fitted with one of our units.

Select a Model to Learn More

Single-Zone Air Conditioners

All Daikin ductless cooling systems feature streamlined, mounted indoor units paired with quiet and compact outdoor units.

As you can likely gather from its name, a mini-split/ductless system is a split system, which means it has components that are located inside and outside the home. However, unlike traditional split HVAC systems, ductless units do not rely on air ducts to route air throughout your home. Rather, a ductless air conditioner is designed to heat or cool a single room, a zone or an addition to your home that may lack or cannot accommodate ductwork.

Powered by electricity and comprised of a small outdoor condensing unit and a compact indoor evaporator unit that mounts to your preferred surface, mini-split ACs are unobtrusive and easy to install and run. The “mini” in this type of HVAC system’s name is a direct reference to the indoor unit’s diminutive size and inconspicuous appearance. The indoor and outdoor components are connected via copper refrigerant tubing and electrical wiring, requiring an opening just three inches or less in diameter.

Widely recognized for their energy efficiency and extremely popular outside the United States, where ducted HVAC systems are rare, the mini-split/ductless systems are an excellent option for attics or garages that have been converted to living space, or for home additions that would require extending your existing ductwork.

17 Series

NV Series

19 Series

Single-Zone Heat Pumps

All Daikin ductless heat pumps consist of an indoor unit, which is either wall-mounted, floor-mounted or concealed, paired with a quiet and compact outdoor unit.

As you likely gathered from its name, a mini-split/ductless system is a split system, which means it has components that are located inside and outside the home. And in the case of heat pumps, they provide year-round comfort by mechanically cooling or heating the air from inside your home while transferring the heat absorbed or lost to the outside via a sealed refrigerant circuit.

Daikin’s single-room heat pumps are energy efficient and ideal for heating a small space. They are small and unobtrusive in your home. Imagine your small office or studio being toasty warm without the fuss of a furnace or the hassle of a ducted system at all. With an opening just three inches or smaller in diameter, a ductless mini-split heat pump is easy to install and maintain.

EMURA

17 Series

19 Series

AURORA

AURORA™ Wall

LV Wall Mount

Quaternity

VISTA™

NV Series

LV Slim Duct

FDMQ Ducted

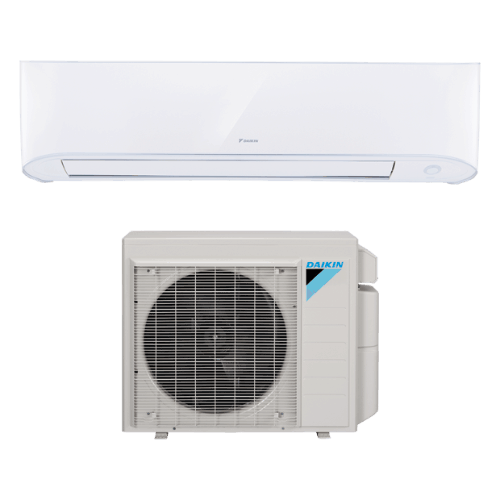

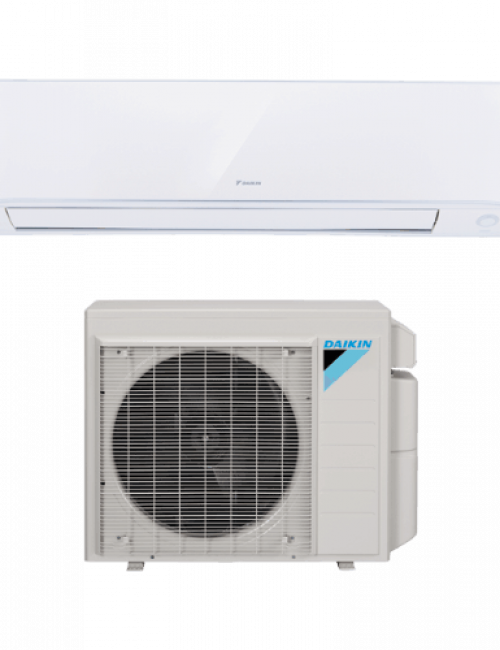

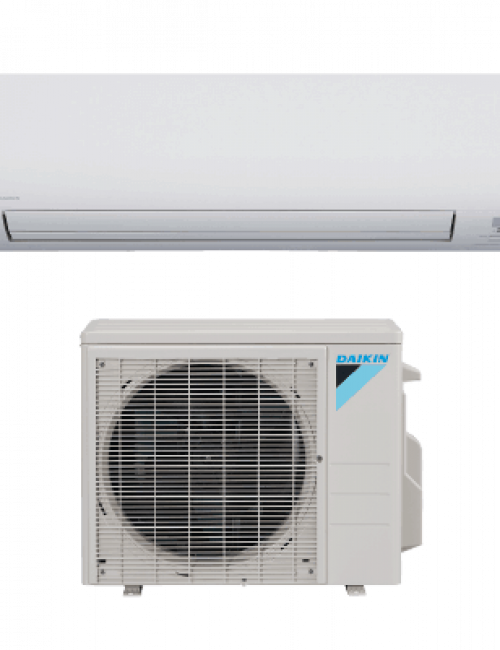

17 Series Wall Mount - Cooling Only

17 Series single-zone inverter wall-mounted systems provide energy efficiency and comfort control with an affordable, cost-saving solution. These systems feature streamlined, wall mounted indoor units paired with quietly compact outdoor units.

Features

Energy Efficient – 17 SEER – up to 11.5EER – Variable Speed Inverter Compressor
Cooling Range 50° – 115°F
Indoor Sound Pressure as low as 23 dB(A)
Eco+
Powerful Operation Mode
Blue Fin Protection
Titanium Apatite Photocatalytic Air Purifying Filter
Auto Fan Speed Control
Self-Diagnostics with Digital Display
Auto Restart after Power Failure
Anti-Corrosion Heat Exchanger Treatment
Anti-Corrosion Treatment on Heat Exchanger

19 Series Wall Mount Air Conditioner

Ideal Solution for spaces with primary living areas, rooms with poor air flow, renovations, basements , attics, garages, and home add-ons. Wall mounted units are simple to install and can placed subtly, high on a wall, where they do not detract from your décor and operate very quietly. Energy Star rated, for additional peace of mind.

Features

Energy Efficient – Up to 19 SEER – Variable Speed Inverter Compressor
Cooling Range 50° – 115° F – ( -4° – 115° F with optional Air Direction adjustment grille)
Indoor Sound Pressure as low as 19 dB(A)
Outdoor Sound Pressure as Low as 46 dB(A)
Washable Air Filter
Program Dry Function
Econo Mode
Powerful Operation Mode
Backlit Wireless
Remote Controller
Auto Fan Speed Control
Self Diagnostics with
Digital Display
Auto Restart after
Power Failure

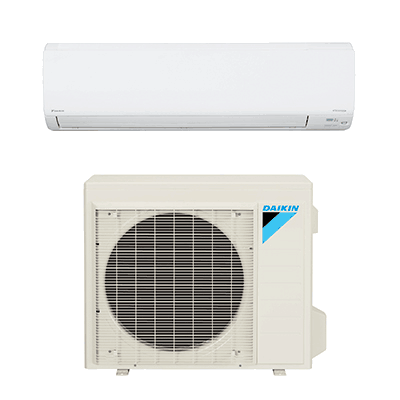

NV Series Wall Mount Air Conditioner

The new NV Series models provide an improved, modern designed indoor unit, enhanced overall performance as compared to previous models. The new NV Series will provide cooling efficiency ratings of up to 17.5 SEER and up to 9.85 EER.

Features

Smart Inverter Technology
Up to 17.5 SEER / Up to 9.85 EER
Cooling range 50-115 °F (-22-115°F with optional Air Direction adjustment grille and facility setting)
Indoor Unit Quiet Operation
Intelligent Eye
Program Dry Function
Auto Fan Speed
Wide Angle Louvers
Dual Flap System
Comfort Mode
3-D Airflow
Low Ambient Cooling
Outdoor Unit Quiet Operation
Automatic Operation
Auto-Restart
Self-Diagnosis
Anti-Corrosion
Titanium Apatite
Photocatalytic Air-
Purifying Filter
Night Set Mode
Wipe-Clean Flat Panel
Powerful Operation
Econo Mode

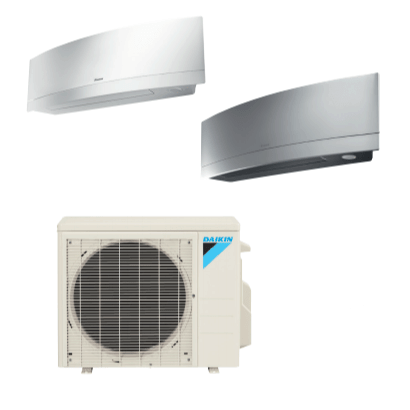

Daikin EMURA Single-Zone Wall Mount Heat Pump

Single-Zone Indoor Unit
A highly intelligent system with innovative features. The next generation of home air conditioning is here, offering smart technology within a sleek, curved silhouette. Daikin EMURA air conditioners are designed to satisfy a uniquely “Designer” sense of style. Offering a sophisticated solution for contemporary interiors, the new Daikin EMURA single-zone system combines form and functionality to create an icon of contemporary climate control. Available in silver or pure matte white, Daikin EMURA makes a modern design statement on any wall. Inside the understated exterior is a highly intelligent system, which can be controlled remotely via the Daikin Comfort App even away from the home.

Features

Inverter Compressor
208/230/1 Power Supply
Cooling Range 50° to 114° F (-4° to 115° F w/Wind Baffle)
Heating Range 5° to 65° F
Indoor Sound Pressure as Low as 19 dB(A)
Outdoor Sound Pressures as Low as 46 dB(A)
Titanium Photocatalytic Air Purifying Filter
Econo Mode
Program Dry Function
Powerful Operation Mode
Backlit LCD Wireless Remote Controller
Outdoor Unit Quiet Operation
Auto Changeover
Auto Fan Speed Control
Self Diagnostics with Digital Display
Auto Restart after Power Failure
Anti-Corrosion Treatment on Heat Exchanger
Max Piping (09/12 MBH): 66 Length – 49 Height
Max Piping (18 MBH): 98 Length – 66 Height
2-Area intelligent Eye
Comfort Airflow
3-D Airflow

17 Series Wall Mount Heat Pump

Features

Energy Efficient – 17 SEER, 9 HSPF
Variable-Speed Inverter Compressor
Heating Range: 5° – 65°F
Indoor Sound Pressure as low as 22 dB(A)
Outdoor Sound Pressure as low as 46 dB(A)
Eco+
Titanium Apatite Photocatalytic Air Purifying Filter
Powerful Operation Mode
Wireless Remote Controller
Auto Changeover (Heat Pump Only)
Auto Fan Speed Control
Self-Diagnostics with Digital Display
Auto-Restart after Power Failure
Anti-Corrosion Heat Exchanger Treatment
Quick warming function (Heat Pump)
Automatic defrosting (Heat Pump)

19 Series Wall Mount Heat Pump

Ideal solution for spaces with primary living areas, rooms with poor air flow, renovations, basements, attics, garages, and home add-ons. Wall-mounted units are simple to install and can placed subtly, high on a wall, where they do not detract from your décor and operate very quietly. Daikin 19 Series is Energy Star rated, for additional peace of mind.

Features

Energy Efficient – Up to 19 SEER
9.0 HSPF
up to 12.5 EER -Variable Speed Inverter Compressor
Cooling Range 50° – 115° F (-4° – 115° F with Air Direction adjustment grille
Heating Range 5° – 65° F
Indoor Sound Pressure as low as 19 dB(A)
Outdoor Sound Pressure as Low as 46 dB(A)
Washable Air Filter
Program Dry Function
Econo Mode
Powerful Operation Mode
Backlit Wireless Remote Controller
Auto Changeover (Heat Pump Only)
Auto Fan Speed Control
Self Diagnostics with Digital Display
Auto Restart after Power Failure
Anti-Corrosion Heat Exchanger Treatment
Quick warming function (Heat Pump)
Hot-start function (Heat Pump)
Automatic defrosting (Heat Pump)

AURORA™ Floor Mount Heat Pump

AURORA™ floor mounted units are simple to install and can be setup in various configurations, on the floor or hanging low on a wall. Its low height enables the unit to fit perfectly beneath a window. The airflow distribution pattern of Daikin’s floor mounted unit is ideal for heating a space, and is a perfect replacement to traditional radiant systems. For the coldest regions, the outdoor units of this Daikin AURORA™ heat pump system have been redesigned to withstand extreme weather conditions with excellent energy efficiency ratings, even when it is down to -13°F / -25°C outside.

Features

Energy Efficient – Up to 20 SEER – Up to 11.7 HSPF – 13.0 EER
Up to 100% Heating Capacity at 5°F (-15°C) and operate efficiently as low as -13°F ambient temperature.
Up to 100% Cooling Capacity at 104°F (40°C).
Cooling Range 50° – 115° F (-4° – 115° F with optional Air Direction adjustment grille)
Heating Range -13° – 60° F
Redesigned PCB in the outdoor unit to withstand extreme conditions
Indoor Sound Pressure as low as 23 dB(A)
Outdoor Sound Pressure as Low as 49 dB(A)
Washable Air Filter
Program Dry Function
Econo Mode
Powerful Operation Mode
Backlit Wireless Remote Controller
Outdoor unit quiet operation
Auto Changeover
Auto Fan Speed Control
Self Diagnostics with Digital Display
Auto Restart after Power Failure
Anti-Corrosion Heat Exchanger Treatment
Quick warming function
Hot-start function
Automatic defrosting

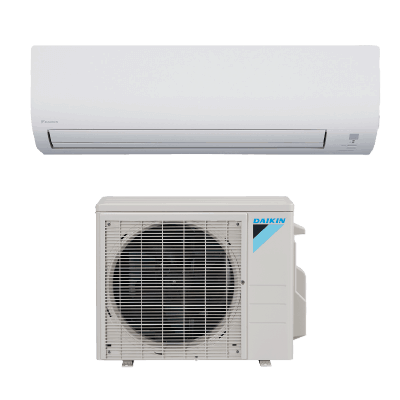

AURORA™ Wall Mount Heat Pump

Total indoor climate control means having the ability to select a desirable temperature for each space in a house and to have that temperature maintained no matter what the temperature outside – even when it is down to -13°F / -25°C, ensuring all year round comfort. For the coldest regions, the outdoor units of this Daikin AURORA™ heat pump system have been redesigned to withstand extreme weather conditions with excellent energy efficiency ratings. Wall mounted units can be placed subtly, high on a wall, where they do not detract from your decor.

Features

Energy Efficient – Up to 20 SEER/ Up to 12.5 HSPF / 13.0 EER
Up to 100% Heating Capacity at 5°F (-15°C) and operate efficiently as low as -13°F ambient temperature.
Up to 100% Cooling Capacity at 104°F (40°C).
Cooling Range 50° – 115° F (-4° – 115° F with optional Air Direction adjustment grille)
Heating Range -13° – 60° F
Redesigned PCB in the outdoor unit to withstand extreme conditions
Indoor Sound Pressure as low as 19 dB(A)
Outdoor Sound Pressure as Low as 49 dB(A)
Washable Air Filter
Program Dry Function
Econo Mode
Powerful Operation Mode
Backlit Wireless Remote Controller
Outdoor unit quiet operation
Auto Changeover
Auto Fan Speed Control
Self Diagnostics with Digital Display
Auto Restart after Power Failure
Anti-Corrosion Heat Exchanger Treatment
Quick warming function
Hot-start function
Automatic defrosting

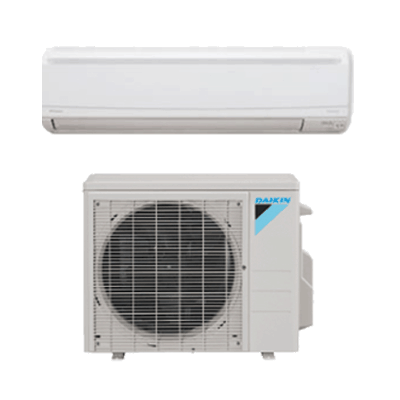

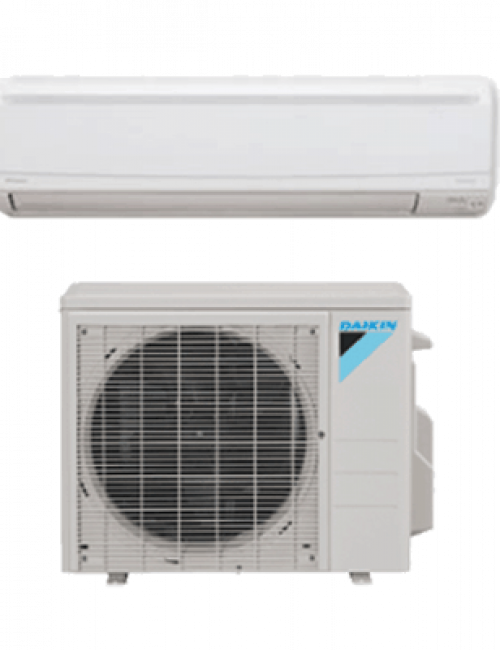

LV Series Wall Mount Heat Pump

LV Series is a feature-packed, intelligent wall mounted system that includes intelligent eye for energy savings and horizontal auto swing outlet fins for 3-D airflow comfort. With up to 24.5 SEER level, LV Series has been awarded the ENERGY STAR^® Most Efficient Mark in 2017.

Features

Energy Efficient – Up to 24.5 SEER
Up to 12.5 HSPF – up to 15.3 EER – Variable Speed Inverter Compressor
Cooling Range 50° – 115° F (-4° – 115° F with optional Air Direction adjustment grille)
Heating Range 5° – 65° F
Indoor Sound Pressure as low as 22 dB(A)
Outdoor Sound Pressure as Low as 43 dB(A)
Intelligent Eye
Power airflow dual flaps and 3-D Airflow
Titanium Apatite Photocatalytic Air Purifying Filter
Weekly timer
Program Dry Function
Econo Mode
Powerful Operation Mode
Backlit Wireless Remote Controller
Auto Changeover
Auto Fan Speed Control
Self Diagnostics with Digital Display
Auto Restart after Power Failure
Anti-Corrosion Heat Exchanger Treatment
Quick warming function
Hot-start function
Automatic defrosting

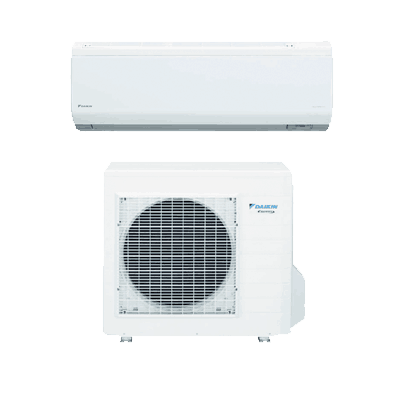

Quaternity Heat Pump

QUATERNITY is designed to maximize comfort even under the most challenging weather conditions. Equipped with built-in intelligence and extensive features in a highly efficient system, QUATERNITY provides a comfortable and refreshing indoor environment with advanced filtration and climate control.

Features

Energy Efficient – Up to 26.1 SEER – Up to 11.0 HSPF – Up to 15.8 EER – Variable Speed Inverter Compressor
Cooling Range 14° – 109° F
Heating Range -4° – 75° F
Indoor Sound Pressure as low as 26 dB(A)
Outdoor Sound Pressure as Low as 46 dB(A)
Power airflow dual flaps and 3-D Airflow
Titanium Apatite Photocatalytic Air Purifying Filter
Powerful Operation Mode
Wireless Remote Controller
Auto Changeover
Auto Fan Speed Control
Self Diagnostics with Digital Display
Auto Restart after Power Failure
Anti-Corrosion Heat Exchanger Treatment
Quick warming function
Hot-start function
Automatic defrosting

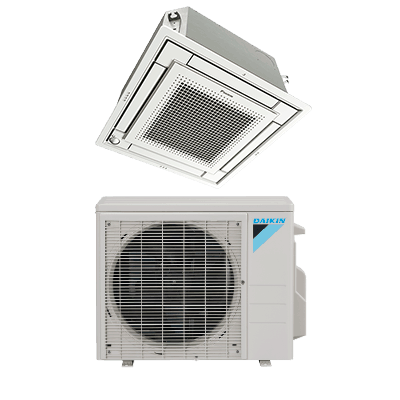

VISTA™ Ceiling Cassette

VISTA™ is a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish. Fitting within the ceiling grid and discreetly mounted to the ceiling itself, VISTA™ is stylish, low profile, and compact. High efficiency and comfort is delivered through the combined use of floor and presence sensors (optional). It is also possible to close individual louvers via the wired remote control for personalized comfort.

Features

Seamless integration in standard architectural ceiling tiles
High efficiencies with up to 20.5 SEER and up to 11.7 HSPF
Energy efficient thanks to specially developed small tube heat exchanger DC fan motor and two optional intelligent sensors
Remarkable blend of iconic design and engineering excellence with an elegant finish in white or a combination of silver and white
No optional adapter needed for DIII-connection link your unit into the wider building management system
Fresh air integration possible
Vertical auto swing (up and down)
Automatic Operation
Program dry function
Auto fan speed (with wired remote controller)
Hot Start
Auto restart after power failure
Self-Diagnosis with digital display
Anti-corrosion treatment of outdoor heat exchanger fin

NV Series Wall Mount Heat Pump

Features

Cooling range 50-115 °F (-4-115°F with optional Air Direction adjustment grille and dipswitch setting)
Heating Range: 5-65°F
Indoor Unit Quiet Operation
Intelligent Eye
Program Dry Function
Auto Fan Speed
Wide Angle Louvers
Dual Flap System
Comfort Mode
3-D Airflow
Low Ambient Cooling
Outdoor Unit Quiet Operation
Automatic Operation
Auto-Restart
Self-Diagnosis
Anti-Corrosion
Titanium Apatite Photocatalytic Air-Purifying Filter
Night Set Mode
Wipe-Clean Flat Panel
Powerful Operation
Econo Mode

LV Series Slim Duct Heat Pump

LV Series is offered in a slim-ducted concealed ceiling unit providing an extremely unobtrusive, compact solution, where only the discharge and intake grilles are visible. In addition, they free up the maximum amount of floor and wall space to minimize the impact on decor. Also, their new low consumption DC fan motor offers energy saving.

Features

Energy Efficient – Up to 15.5 SEER – Up to 10.4 HSPF up to 12.5 EER -Variable Speed Inverter Compressor
Cooling Range 50° – 115° F (-4° – 115°F with optional Air Direction adjustment grille)
Heating Range 5° – 64.4° F
Indoor Sound Pressure as low as 31 dB(A)
Outdoor Sound Pressure as Low as 43 dB(A)
Weekly timer
Program Dry Function
Econo Mode
Powerful Operation Mode
Backlit Wireless Remote Controller
Auto Changeover
Auto Fan Speed Control
Self Diagnostics with Digital Display
Auto Restart after Power Failure
Anti-Corrosion Heat Exchanger Treatment
Quick warming function
Hot-start function
Automatic defrosting

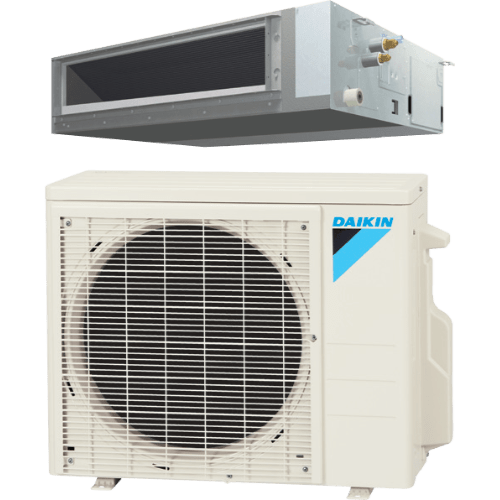

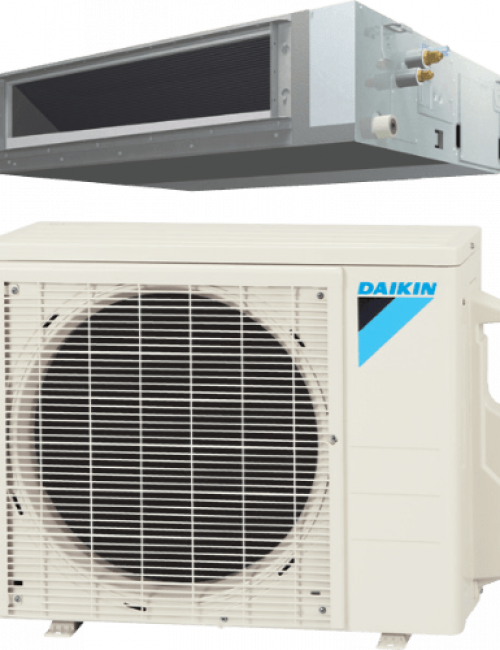

FDMQ - Ducted Concealed Heat Pump

The FDMQ ducted concealed indoor unit expands on the current offering of single zone ducted systems by providing external static pressure capabilities of up to .6. With up to 20.2 SEER level, FDMQ ducted concealed indoor unit is ENERGY STAR® Certified.

Features

Energy efficient – Up to 20.2 SEER
Up to 10.6 HSPF
Up to 12.7 EER
Available in .75 to 2 Tons
Capable of providing external static Pressures up to .6 in. Wg on all models
Integral lift mechanism with 29-9/16″ of lift
Drain pan inspection port makes it easy to observe drain pan conditions
No optional adapter needed for DIII – connection
Link your unit into the wider Building management system
Low-ambient cooling capabilities down to -4°F (-20°C) with facility setting and air adjustment grille
Compatible with the Daikin Zoning Kit (DZKS)

Here to Help You

Get Advice From a Pro

We show you what you need, and why you need it.

Select a Model to Learn More

Single-Zone Air Conditioners

Single-Zone Heat Pumps

17 Series Wall Mount - Cooling Only

Features

19 Series Wall Mount Air Conditioner

Features

NV Series Wall Mount Air Conditioner​

Features

Daikin EMURA Single-Zone Wall Mount Heat Pump

Features

17 Series Wall Mount Heat Pump

Features

19 Series Wall Mount Heat Pump

Features

AURORA™ Floor Mount Heat Pump

Features

AURORA™ Wall Mount Heat Pump

Features

LV Series Wall Mount Heat Pump

Features

Quaternity Heat Pump

Features

VISTA™ Ceiling Cassette

Features

NV Series Wall Mount Heat Pump

Features

LV Series Slim Duct Heat Pump

Features

FDMQ - Ducted Concealed Heat Pump

Features

Here to Help You

Get Advice From a Pro

NV Series Wall Mount Air Conditioner
